Pixel pitch: P2-P16
Match the listed range to minimum viewing distance, screen dimensions and content detail. Long-distance signage generally prioritizes readable content and total resolution.
PROFESSIONAL SERIES
Outdoor LED Display
P2-P16 outdoor LED display systems for fixed installations
Pixel pitches from 2 mm to 16 mm in the listed range
Brightness options must be matched to orientation and local light limits
Confirm weather exposure, structure and service access before quoting
Quick Specifications
Core specs at a glance — the B2B essentials you need to evaluate your project
Full Pixel Pitch Range
P2 – P16, all outdoor scenarios
10,000 nits Peak Brightness
Sunlight-readable, vivid colors
3,840 Hz High Refresh Rate
Flicker-free, camera-ready capture
IP65 Front / IP54 Rear
Dust-tight, all-weather operation
Plan the Right LED Display Configuration
Outdoor display selection depends on site orientation, viewing distance, ambient light, weather exposure, structural engineering, access and local regulations.
Brightness by orientation
Provide screen direction, direct-sun hours and nighttime restrictions. Brightness and automatic dimming must be confirmed for the selected model and site.
Enclosure and thermal plan
Confirm front/rear ingress protection, drainage, ventilation, operating conditions and any coastal, dusty or high-temperature exposure.
Installation environments
- Roadside and building signage: Check sight lines, traffic rules, permits, brightness limits, structural loads and service access.
- Stadium and venue: Define viewing zones, camera use, scoreboard/data inputs, redundancy and safe maintenance windows.
- Commercial facade: Coordinate facade attachments, ventilation, waterproofing, cable paths and neighboring-light controls.
Delivery scope to confirm
- Approved cabinet map, model list and structural interface
- Control, communications, power-distribution and dimming scope
- Packing list, wiring information and order-specific acceptance checklist
Maintenance planning
- Front/rear access, lifting points and electrical isolation
- Recommended sealed modules, power supplies and control spares
- Configuration backup, monitoring access and water-ingress inspection plan
Information needed for an accurate quote
- Screen dimensions, installation height and minimum viewing distance
- Orientation, sun exposure, operating hours and local brightness rules
- Site temperature, rain, dust, humidity or coastal exposure
- Structure status, maintenance side, power standard, destination and required date
How much brightness does an outdoor LED display need?
There is no single value for every site. Orientation, direct sun, shading, viewing distance and nighttime limits should determine the selected model and dimming schedule.
Does the supplier design the support structure?
The display supplier can provide cabinet loads and interface information. A qualified local engineer should verify wind, foundation, attachment and code requirements for the actual site.
What outdoor spares should be planned?
Base the list on the final model and access constraints. Typical categories include matched modules, power supplies, receiving hardware, cables and sealing consumables.
Core Advantages
Why MAXV indoor LED displays stand out — engineering innovations that make a real difference in your project
Specify Brightness from the Site
Record screen orientation, direct-sun hours, viewing distance and local nighttime limits. Select the quoted brightness and dimming strategy from the actual environment.
Define Weather and Corrosion Exposure
Confirm front and rear protection, drainage, ventilation, temperature, humidity, salt or dust exposure and the maintenance access required at the site.
Calculate Power from the Final Layout
Use the selected model, screen area, average and maximum power values to size distribution, protection and cooling. Do not estimate operating cost from a marketing percentage.
Engineer the Supporting Structure
Provide dimensions, installation height and site information to the project engineer. Wind, foundation, attachment and local permit requirements must be checked locally.
Plan Safe Service Access
Choose front or rear maintenance according to the structure. Include access routes, lifting method, isolation points and module replacement clearance.
Approve Content and Dimming Behavior
Test representative content in daylight and low-light conditions. Document brightness schedules, sensor behavior, remote control and recovery after signal or power loss.
Product Details
A closer look at the components that make our indoor fixed LED displays reliable and performant
Die-Cast Cabinet Body
LED Module & Lamp Beads Close-up
SMD/DIP LED Beads & Driver IC
Rear Cover & Fan Cooling System
Power Supply Unit
Receiving Card & Wiring Ports
Application Cases
Proven in the field — real installations that showcase the versatility and performance of our indoor LED displays

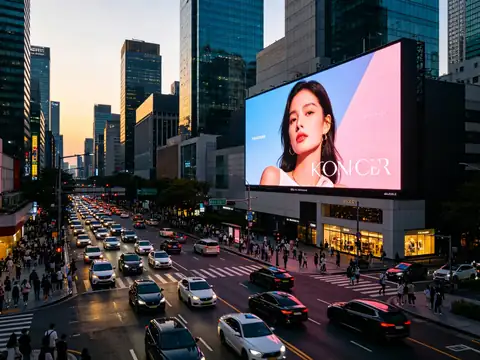

Outdoor Billboard Advertisement
Installed a 10×6 MX-O10 display on a downtown building facade. 8,000 nits brightness ensures clear daytime visibility. The IP65-rated screen has operated flawlessly through monsoon seasons for over 2 years.

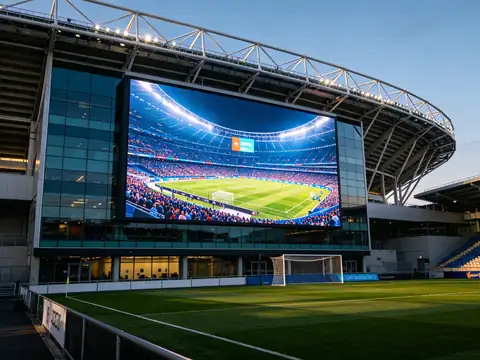

Sports Stadium Perimeter
Full-wrap MX-O6 display system in a 30,000-seat stadium. Fan-cooled cabinets maintain stable brightness during packed matches. Quick-lock assembly cut installation time from 14 days to just 5.

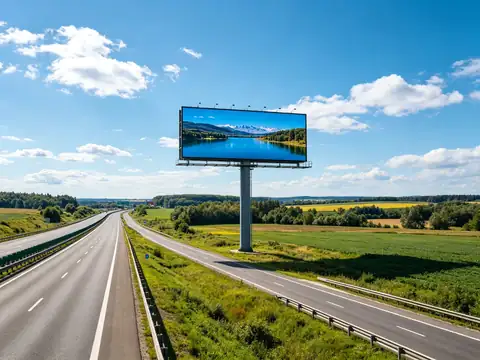

Highway Digital Billboard
Double-sided MX-O8 display at a major highway junction. Auto-brightness adjustment transitions seamlessly from daylight to nighttime visibility. Remote cloud management enables instant content updates.

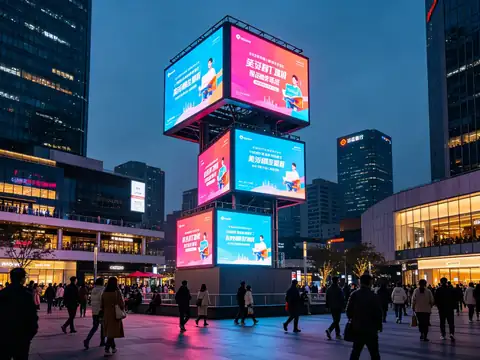

Advertising Tower Landmark
Custom 8-face MX-O16 advertising tower in a city center plaza. DIP346 LEDs deliver exceptional brightness at long viewing distances. Scheduled content rotation serves 16+ advertisers monthly.

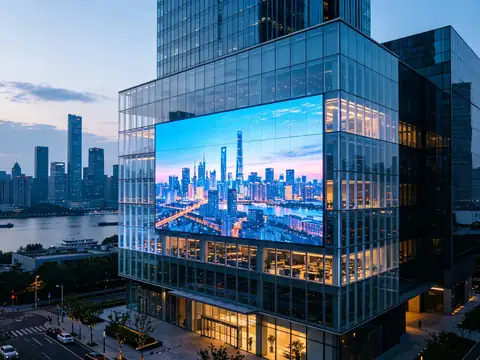

Building Wrap Facade
Large-format MX-O10 building wrap covering 500m² of a commercial tower facade. Modular panel design matched the building architecture flawlessly. Energy-saving ICs reduced daytime power draw by 35%.

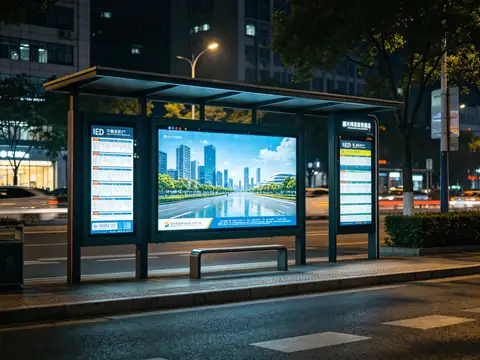

Roadside Digital Signage
Network of 50 MX-O8 displays deployed across city bus stops. All-weather construction eliminated maintenance calls. Centralized cloud system schedules promotions, public announcements, and real-time transit info.
Full Technical Specifications
Complete parameter breakdown
| Parameter | MX-O2 | MX-O2.5 | MX-O3 | MX-O4 | MX-O5 | MX-O6 | MX-O8 | MX-O10 | MX-O16 |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2mm | 2.5mm | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm | 16mm |
| LED Type | SMD1515 1R1G1B | SMD2020 1R1G1B | SMD2020 1R1G1B | SMD2727 1R1G1B | SMD2727 1R1G1B | SMD3535 1R1G1B | SMD3535 1R1G1B | DIP346 1R1G1B | DIP346 1R1G1B |
| Pixel Density | 250,000Dot/m² | 160,000Dot/m² | 111,111Dot/m² | 62,500Dot/m² | 40,000Dot/m² | 27,777Dot/m² | 15,625Dot/m² | 10,000Dot/m² | 3,906Dot/m² |
| Module Size (W×H) | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm |
| Module Resolution | 160×80 | 128×64 | 107×53 | 80×40 | 64×32 | 53×27 | 40×20 | 32×16 | 20×10 |
| Cabinet Size (W×H) | 960×960mm | 960×960mm | 960×960mm | 960×960mm | 960×960mm | 960×960mm | 960×960mm | 960×960mm | 960×960mm |
| Cabinet Weight | 28Kg | 28Kg | 28Kg | 28Kg | 28Kg | 28Kg | 28Kg | 28Kg | 28Kg |
| Cabinet Resolution | 480×480 | 384×384 | 320×320 | 240×240 | 192×192 | 160×160 | 120×120 | 96×96 | 60×60 |
| Cabinet Material | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel | Die-cast aluminum/steel |
| Scan | 1/20 | 1/16 | 1/13 | 1/10 | 1/8 | 1/7 | 1/5 | 1/4 | 1/2 |
| Brightness | 5,000nits | 5,500nits | 6,000nits | 6,500nits | 7,000nits | 7,500nits | 8,500nits | 10,000nits | 10,000nits |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz | 1920Hz | 1920Hz |
| Gray Scale | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit |
| Viewing Angle (H/V) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Color Temperature | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K |
| Protection Level | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Lifespan | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs |
| Input Voltage | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ |
| Power Consumption (Avg) | 320W/m² | 320W/m² | 310W/m² | 310W/m² | 300W/m² | 300W/m² | 280W/m² | 260W/m² | 240W/m² |
| Power Consumption (Max) | 520W/m² | 500W/m² | 500W/m² | 480W/m² | 460W/m² | 450W/m² | 420W/m² | 380W/m² | 350W/m² |
| Working Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Working Humidity | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH |
| Storage Temperature | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C | -40°C~+70°C |
| Storage Humidity | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Installation | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor | Fixed outdoor |
Factory & After-Sales Service
Quality manufacturing and comprehensive support — the foundation of every MAXV LED display
Confirm Outdoor Inspection and Acceptance
Request order-specific configuration, enclosure, sealing, functional, calibration, packing and pre-shipment acceptance records for the selected model.
Site and Configuration Review
Confirm orientation, dimensions, pitch, brightness, cabinet layout, structure interface and access method.
Control and Dimming Plan
Document content sources, communications, scheduled brightness, monitoring and recovery behavior.
Packing and Delivery Scope
State packing, shipping terms, destination responsibilities and handling requirements for the order.
Spares and Support Scope
Define spare modules and power/control parts, written warranty terms and the support escalation process.
Frequently Asked Questions
Quick answers to common questions about our outdoor LED displays.
What brightness do outdoor LED displays need?
Outdoor LED displays typically require 5,000-8,000 nits brightness to remain visible under direct sunlight. Our outdoor series delivers up to 7,000 nits with automatic brightness adjustment that adapts to ambient light conditions, saving power at night.
Are outdoor LED displays waterproof?
Yes. MAXV outdoor LED displays feature IP65 front protection and IP54 rear protection, ensuring reliable operation in rain, dust, and extreme weather. All cabinets undergo 48-hour waterproof testing before shipment.
What is the typical viewing distance for outdoor displays?
For outdoor displays, viewing distance correlates with pixel pitch. P4-P6 is ideal for distances of 5-20m (billboards, building wraps). P8-P10 works well for 15-40m (highway billboards, stadium screens). We recommend P6 as the most versatile outdoor pitch.
How are outdoor LED displays cooled?
Our outdoor cabinets use natural convection cooling with aluminum heat sinks and intelligent fan systems. The temperature-controlled fans activate only when needed, reducing power consumption and extending component life.
Can outdoor LED displays operate in extreme temperatures?
Yes. Our outdoor LED displays are designed to operate in temperatures ranging from -20C to +60C. The combination of intelligent fans, high-quality ICs, and thermal management ensures stable performance even in desert heat or freezing winter conditions.
What is the lifespan of outdoor LED displays?
MAXV outdoor LED displays have a lifespan of 100,000+ hours. The outdoor models use industrial-grade components with enhanced protection against UV radiation, moisture, and temperature fluctuations to ensure longevity in harsh environments.
Do outdoor displays support automatic brightness adjustment?
Yes. All our outdoor displays include built-in ambient light sensors that automatically adjust brightness from 200 to 7,000 nits. This saves up to 40% power consumption at night while maintaining optimal visibility during the day.
What maintenance is required for outdoor LED displays?
Routine maintenance includes periodic visual inspection, cleaning of air intake vents, and checking seals. Our displays support front and rear service. Recommended inspection schedule: monthly for high-dust areas, quarterly for normal environments.
Request an Outdoor LED Display Configuration
Send screen size, viewing distance, orientation, weather exposure, structure, service access, destination and required date for review.
