Pixel pitch: P1.25-P5
Use the listed model range as a starting point. Confirm the nearest regular viewer and test the smallest text or graphic detail with representative content.
PROFESSIONAL SERIES
Indoor Fixed LED Display
P1.25-P5 indoor LED display systems for fixed installations
Pixel pitches from 1.25 mm to 5.0 mm in the listed range
600-nit and 3840 Hz options available in the model table
Plan front or rear access before cabinet and structure approval
Quick Specifications
Core specs at a glance — the B2B essentials you need to evaluate your project
Full Pixel Pitch Range
P1.2 – P5.0, fits all scenarios
1,200 nits Peak Brightness
Vibrant, stunning visuals
3,840 Hz High Refresh Rate
Flicker-free, camera-ready
Dual Maintenance Support
Space-saving, easy wiring
Plan the Right LED Display Configuration
Indoor projects should be specified around viewing distance, room light, source resolution, service access and the content that must remain readable.
Brightness and refresh
The table lists 600-nit models and 1920/3840 Hz options. Confirm dimming range and camera requirements for the selected model.
Cabinet and power
Compare cabinet dimensions, weight, average and maximum power, input voltage and the available mounting structure before approving the layout.
Installation environments
- Meeting and training rooms: Check camera use, room reflections, source switching and front-service clearance.
- Retail and lobbies: Define ambient light, operating schedule, content ownership and protection from public contact.
- Control and broadcast rooms: Document redundancy, continuous operation, calibration and signal recovery requirements.
Delivery scope to confirm
- Approved cabinet layout and model list
- Controller, receiving hardware, cabling and power scope
- Mounting drawings, packing list and acceptance checklist
Maintenance planning
- Front/rear access and safe module-removal clearance
- Recommended spare modules, power supplies and receiving hardware
- Calibration files, configuration backup and fault-escalation process
Information needed for an accurate quote
- Screen width and height; nearest and typical viewing distance
- Room light, camera use, source resolution and required inputs
- Wall/structure condition, front or rear access and power standard
- Destination country, delivery terms and required installation date
Which indoor pixel pitch should I choose?
Start with viewing distance and content detail, then compare the P1.25-P5 models. The final choice should be checked with actual content and the complete screen resolution.
Is front maintenance required?
It is useful where there is no rear service corridor. Confirm module, power-supply and receiving-card access as well as removal clearance before the wall structure is built.
What should be included in acceptance?
Agree visual uniformity, content playback, signal recovery, control functions, cabinet alignment, configuration backup and the order-specific packing list.
Core Advantages
Why MAXV indoor LED displays stand out — engineering innovations that make a real difference in your project
Select Pixel Pitch from Viewing Distance
Compare P1.25 through P5 models against the nearest viewer, screen dimensions and source resolution. A content sample helps verify text and detail before the model is approved.
Match Brightness to the Room
The listed models specify 600 nits. Confirm ambient light, reflections and dimming requirements for the actual room instead of selecting brightness from a generic maximum.
Define Camera and Signal Requirements
For studios and hybrid meetings, document refresh rate, scan mode, frame rate, processor, inputs and camera shutter settings in the proposal and acceptance checklist.
Choose Front or Rear Service Access
Confirm wall depth, ventilation, cable routes and removal access before the supporting structure is finalized. Service access affects cabinet choice and installation cost.
Approve Cabinet and Module Compatibility
Record cabinet size, module size, receiving-card layout and spare-part identifiers for the quoted model so future replacements can be matched to the installed batch.
Plan Calibration and Content Acceptance
Use representative text, charts, skin tones and low-brightness content during acceptance. Agree uniformity, dead-pixel, signal-recovery and control checks in writing.
Product Details
A closer look at the components that make our indoor fixed LED displays reliable and performant
Die-Cast Cabinet Body
LED Module & Lamp Beads Close-up
SMD LED Beads & Driver IC
Rear Cover Structure
Power Supply Unit
Receiving Card & Wiring Ports
Application Cases
Proven in the field — real installations that showcase the versatility and performance of our indoor LED displays

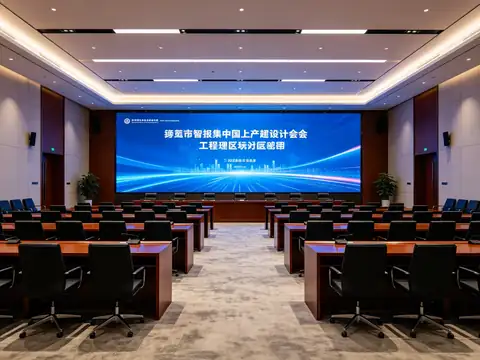

Corporate Conference Room
MX-N1.86 video wall installed in a 150-seat corporate training center. The symmetric U-shaped layout and LED perimeter lighting create a professional, distraction-free environment for presentations and videoconferencing.

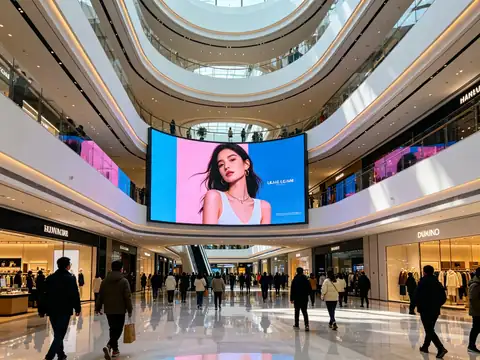

Shopping Mall Atrium
Large-format curved ceiling LED display suspended above a multi-level shopping atrium. The high-brightness screen delivers dynamic fashion advertising and brand campaigns visible from every floor and angle.

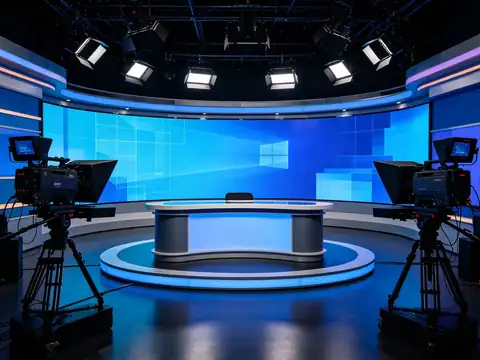

TV Broadcast Studio
MX-N1.25 fine-pitch curved video wall as the main backdrop in a modern TV studio. Paired with dual-camera positioning and immersive blue ambient lighting, it delivers scan-line-free broadcast footage with cinematic depth.

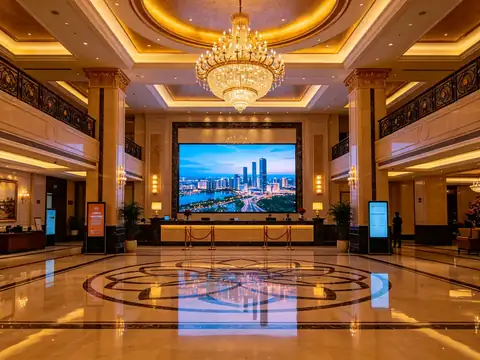

Hotel Lobby & Event Hall
Full-color MX-N2.5 display behind the reception desk of a luxury hotel. The panel showcases welcoming cityscapes and brand messages, complementing the marble lobby and crystal chandelier for a grand arrival experience.

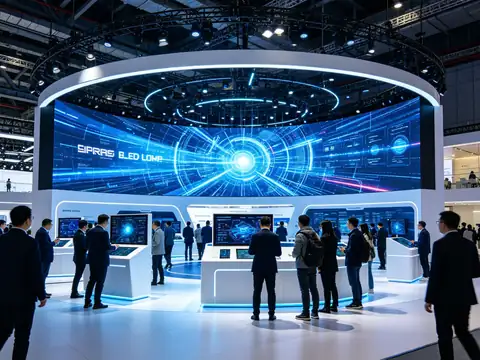

Exhibition & Trade Show
Immersive curved MX-N2.5 display at a flagship tech exhibition booth. The 180° screen experience, paired with interactive touch kiosks, lets visitors explore product demonstrations hands-on and drives deeper engagement.

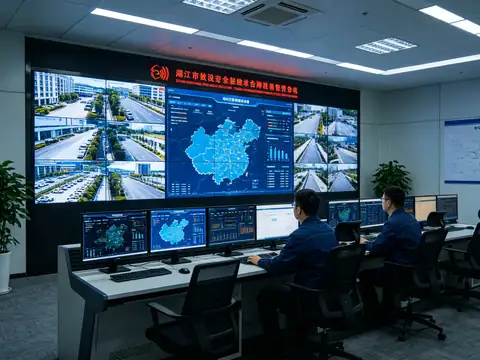

Control Room Dashboard
MX-N1.53 ultra-fine pitch video wall powering a city command center. The tiled display streams live CCTV feeds, GIS maps, and real-time analytics simultaneously, enabling operators to manage critical infrastructure 24/7.
Full Technical Specifications
Complete parameter breakdown
| Parameter | MX-N1.25 | MX-N1.53 | MX-N1.667 | MX-N1.86 | MX-N2 | MX-N2.5 | MX-N3.076 | MX-N4 | MX-N5 |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.53mm | 1.667mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4.0mm | 5.0mm |
| LED Type | SMD1010 1R1G1B | SMD1212 1R1G1B | SMD1212 1R1G1B | SMD1515 1R1G1B | SMD1515 1R1G1B | SMD2121 1R1G1B | SMD2121 1R1G1B | SMD2121 1R1G1B | SMD2121 1R1G1B |
| Pixel Density | 640,000Dot/m² | 427,716Dot/m² | 360,000Dot/m² | 288,369Dot/m² | 250,000Dot/m² | 160,000Dot/m² | 105,625Dot/m² | 62,500Dot/m² | 40,000Dot/m² |
| Module Size (W×H) | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm | 320×160mm |
| Module Resolution | 256×128 | 209×105 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 | 80×40 | 64×32 |
| Cabinet Size (W×H) | 640×480mm | 640×480mm | 640×480mm | 640×480mm | 640×480mm | 640×480mm | 640×480mm | 640×480mm | 640×480mm |
| Cabinet Weight | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg | 7.5Kg |
| Cabinet Resolution | 512×384 | 418×318 | 384×288 | 344×258 | 320×240 | 256×192 | 208×156 | 160×120 | 128×96 |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Scan | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 | 1/16 |
| Brightness | 600nits | 600nits | 600nits | 600nits | 600nits | 600nits | 600nits | 600nits | 600nits |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920/3840Hz | 1920/3840Hz | 1920/3840Hz |
| Gray Scale | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit | 10~14bit |
| Viewing Angle (H/V) | 172°/170° | 172°/170° | 172°/170° | 172°/170° | 172°/170° | 172°/170° | 172°/170° | 172°/170° | 172°/170° |
| Color Temperature | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K | 2000~10000K |
| Protection Level | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Lifespan | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs | ≥100,000hrs |
| Input Voltage | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ |
| Power Consumption (Avg) | 240W/m² | 230W/m² | 240W/m² | 240W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² |
| Power Consumption (Max) | 420W/m² | 400W/m² | 400W/m² | 420W/m² | 390W/m² | 390W/m² | 400W/m² | 360W/m² | 340W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Working Humidity | 10%~90% RH | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH |
| Storage Temperature | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C | -40°C~+60°C |
| Storage Humidity | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH | 10%~95% RH |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Installation & Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Factory & After-Sales Service
Quality manufacturing and comprehensive support — the foundation of every MAXV LED display
Confirm the Build and Acceptance Records
Request records tied to the quoted model and order, including configuration approval, visual inspection, functional testing, calibration, packing and pre-shipment acceptance.
Configuration Review
Confirm pitch, cabinet layout, processor, inputs, access method and power distribution before production.
Content and Signal Test
Test representative content and document the source resolution, frame rate and control workflow.
Packing and Delivery Scope
State packing, shipment terms, destination responsibilities and the required project date in the quote.
Spares and Support Scope
Request the recommended spare list, written warranty terms, exclusions and remote support process.
Frequently Asked Questions
Quick answers to common questions about our indoor LED displays.
What pixel pitch should I choose for indoor LED displays?
For indoor LED displays, the pixel pitch depends on viewing distance. For close-up viewing (1-3m), choose P1.25-P1.86. For medium distance (3-6m), P2-P2.5 works best. For general signage (6m+), P3-P5 is cost-effective. Our team can help you calculate the optimal pitch based on your specific installation size and viewing distance.
How long do indoor LED displays last?
MAXV indoor LED displays have a lifespan of 100,000+ hours (approximately 10+ years of normal operation). The actual lifespan depends on usage patterns, ambient temperature, and maintenance frequency. We use A-grade LED lamps and premium driver ICs to ensure long-term reliability.
Can indoor LED displays be used in bright environments?
Yes. Our indoor LED displays offer brightness of 800-1,200 nits, sufficient for most indoor environments including retail stores with large windows and brightly lit lobbies. For environments with direct sunlight exposure, we recommend our high-brightness series.
What is the cabinet size and weight?
All our indoor cabinets share a standard 640x480mm size, with a weight of approximately 7.5kg per cabinet. This standardized size enables flexible assembly and seamless splicing for any screen dimension.
Do you offer front service maintenance?
Yes. All MAXV indoor LED displays support front service — modules can be removed and replaced from the front of the screen. This is especially important for wall-mounted installations where rear access is unavailable.
What is the refresh rate of indoor LED displays?
Our standard refresh rate is 3,840 Hz, upgradeable to 7,680 Hz on select models (MX-N1.25 to MX-N2.5). The high refresh rate ensures flicker-free video capture on cameras, making our displays suitable for broadcast and live event environments.
Can indoor LED displays be curved or shaped?
Yes. Our cabinets support positive and negative curvature of up to +/- 10 degrees per cabinet joint, enabling concave, convex, and wave-shaped screen configurations. Custom curved installations can be designed for architectural statement pieces.
Are the displays fanless?
Yes. Our indoor MX-N series cabinets are passively cooled with optimized aluminum heat sinks — no fans means zero noise, zero vibration, and zero dust intake. This is critical for conference rooms, broadcast studios, and quiet public spaces.
What is the warranty period?
All indoor cabinets carry a standard 3-year warranty covering LED lamps, driver ICs, power supplies, and receiving cards. An extended 5-year warranty is available on request. We also provide free technical support for the lifetime of the product.
How are the displays packaged for shipping?
Each cabinet is packed in custom foam plus plywood export crate. Modules are individually wrapped, and cables, spare parts, and accessories come in separate sealed boxes. Custom branding on packaging is available for bulk orders.
Request an Indoor LED Display Configuration
Send screen size, viewing distance, room light, source resolution, service access, destination and required date for a model and scope review.
